Product Overview
Overview

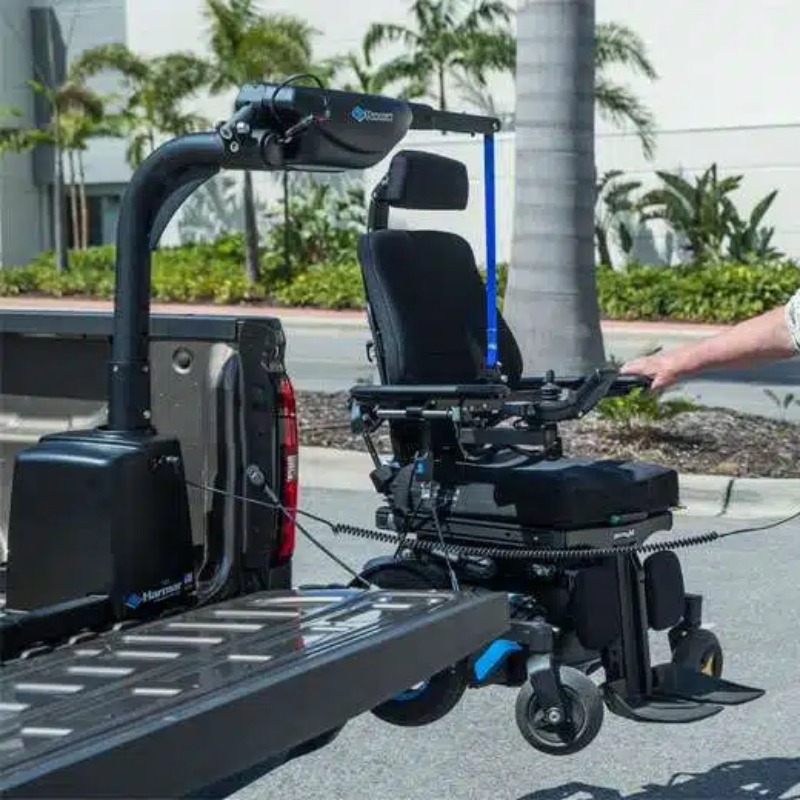

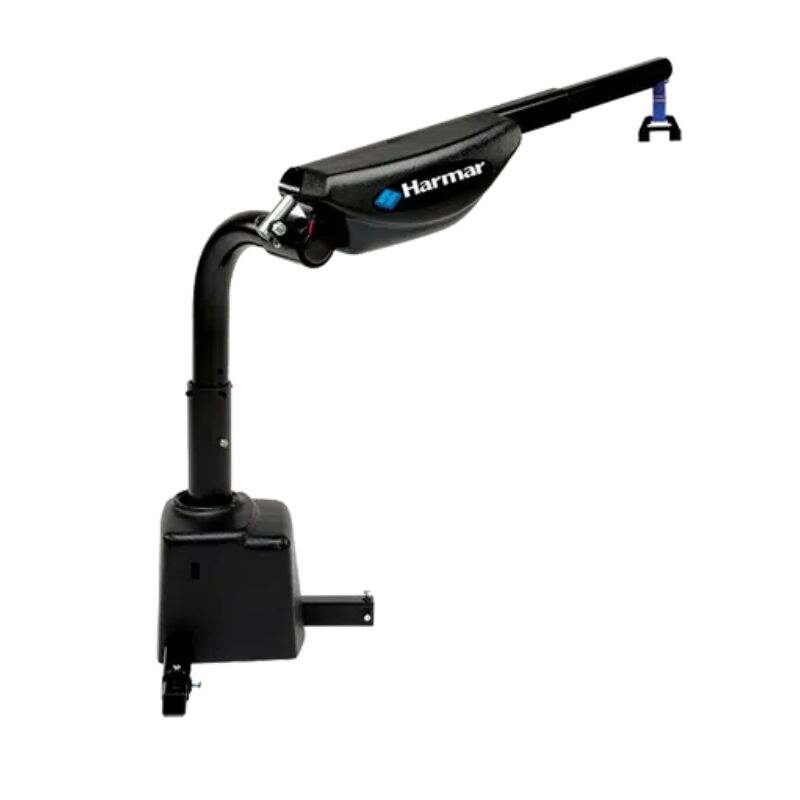

The Harmar AL425HD Axis II Heavy Duty Inside Lift is a high‑capacity, fully powered hoist lift designed for loading large power wheelchairs into pickup trucks and full-size vans. Its heavy‑duty construction, adjustable boom, and side‑loading offset post make it a powerful and adaptable solution for transporting even the most robust mobility devices.
What to Know When Ordering
This lift bolts to the vehicle’s floor and requires hardwiring to the vehicle battery. Because of the electrical installation and calibration required for the powered lift and rotation functions, professional installation is recommended. The AL425HD includes a docking device for secure attachment and can be installed on either the driver or passenger side. Clearance within the cargo area must be verified to ensure the powerchair fits once lifted.
Key Features
- Fully powered lifting and powered rotation for simplified operation.
- Heavy-duty 450 lb capacity for large and fully-equipped powerchairs.
- Adjustable boom height, length, and pitch for optimal positioning.
- Offset post design enables convenient side loading through the vehicle door.
- Weather-resistant hand control; optional wireless remote available.
- Light install weight of approximately 70 lbs for reduced vehicle load.
Vehicle Compatibility
The AL425HD is ideal for full-size vans, pickup trucks, and some SUVs that offer sufficient interior height and cargo depth. The lift’s adjustable arm allows flexibility for different vehicle sizes and interior configurations.
Mobility Device Compatibility
- Designed for heavy power wheelchairs weighing up to 450 lbs.
- Works with most powerchair frames using the included docking device.
- No modifications to the wheelchair are required.
What’s Included
- AL425HD Axis II Heavy Duty Inside Lift
- Docking device
- Weather-resistant hand control
- Mounting hardware
Why Choose This Lift?
- High capacity for lifting the heaviest powerchairs.
- Powered lifting and rotation minimize physical effort.
- Adjustable boom ensures proper fit across many vehicle types.
- Offset loading allows easier access when positioning the device.
Specifications
| Lifting Capacity |
450 lbs |
| Lift Type |
Inside hoist lift with powered lifting and rotation |
| Installed Product Weight |
70 lbs |
| Boom Height |
31.5″ – 46.5″ |
| Boom Length |
26.25″ – 33.5″ |
| Boom Pitch |
0° – 15° |
| Securement |
Docking device (included) |
| Recommended For |
Heavy-duty power wheelchairs |
Frequently Asked Questions
Will this lift work with my vehicle?
The AL425HD works with most full-size vans and pickup trucks. Cargo height and depth must be sufficient to accommodate the powerchair inside the vehicle.
Does my mobility device need modifications?
No modifications are needed. The docking device attaches directly to the mobility device.
How does loading work?
Attach the docking device, activate the powered lift to raise the mobility device, then use the powered rotation to swing it into the vehicle’s cargo area.
Is professional installation recommended?
Yes. The lift requires bolting to the vehicle floor and electrical wiring to the battery, making professional installation the safest option.
Can the lift mount on either side?
Yes. The AL425HD can install on either the passenger or driver side to meet user preference and vehicle layout.
